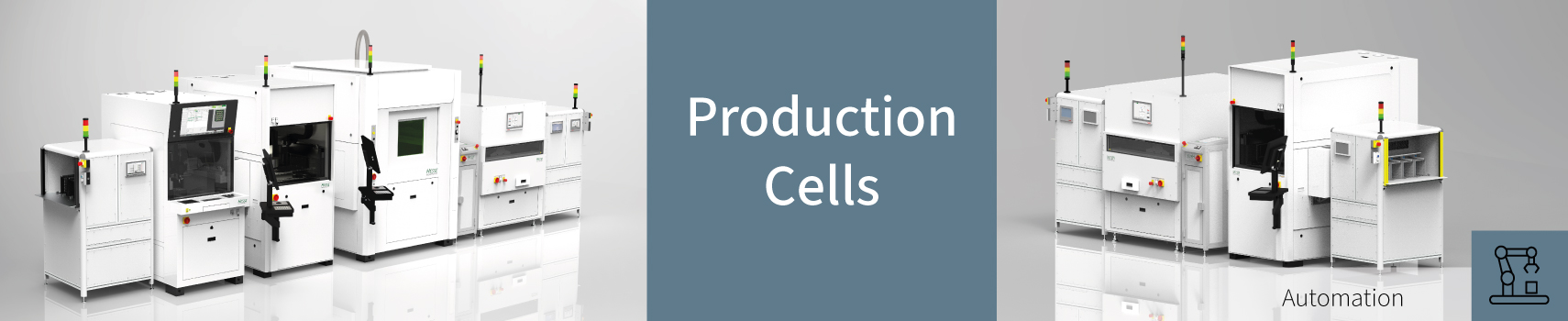

Production Cell Overview – Modules
- Magazin Loader: Multi‑magazine loading system with integrated, width‑adjustable magazine holders for multiple magazines and an integrated shuttle for further transport
- Bondjet BJ959: Ultrasonic wire bonder
- Smart Welder SW1089: Ultrasonic welding of terminals, pins, sleeves
- Laser Welder LW1089: Laser welding system
- Shuttle system: for transfer of carrier or products between transportation lanes
- Cleaning system: Surface cleaning with compressed air and rotating nozzles (Taifun-Clean)
- Magazin Unloader: Multi‑magazine unloading system with integrated, width‑adjustable magazine holders for multiple magazines and an integrated shuttle for further transport.
HBN – Hesse Bonder Network HBN1000
- Hesse Bonder Network “HBN 1000” – machine networking and synchronization.
Hesse Production App
- The Hesse App brings all Hesse machines to your smartphone. Operators can view the status in real time and receive push notifications as soon as action is required. Our Sales-Team will be happy to answer any questions you may have.
MES – Manufacturing Excution System
- The Production Cell can be linked to any custom MES by one single interface. Standardized protocols like SECS/GEM or OPC UA are common solutions with supported base scenarios (like RAM statistics, product traceability, remote commands).
Magazine Loader
Multi‑magazine loader as a stand‑alone system
Functions & Construction:
- Integrated, width-adjustable magazine holders for 3–5 magazines
- Pusher for loading and unloading the products
- Magazine monitoring and locking
- Slot monitoring
- Safety device
- Integrated shuttle for onward transport
- Control system with visualization
- Status indicator light
- Magazine identification via code scanning possible
Option
- Belt drive in the magazine holder for onward transport
- Adaptation to customer-specific magazine sizes
Shuttle Systems
Stand‑alone shuttle for fast distribution (transport) of workpiece carriers across processing lanes.
Functions & Construction:
- Adjustable lane width for customer‑specific workpiece carriers
- Safety device
- Control system with visualization
- Workpiece / product identification via code scanning possible
Option
-
Customization of the shuttle according to customer requirements
Cleaning Station
Cleaning station as stand-alone system
Functions & Construction:
- Lane width can be adapted to customer‑specific workpiece carriers
- Surface cleaning by rotating nozzles (Taifun-Clean)
- Suction, filtration, and supply unit
- Safety device
- Control system with visualization
Option:
- Adaptation of the cleaning station to the customer’s product
- Cleaning with nitrogen
- Ionization of the medium
- Control and monitoring of cleaning system
Magazine Unloader
Multi‑magazine unloader as a stand‑alone system
Functions & Construction:
- Integrated, width‑adjustable magazine holders for 3–5 magazines
- Pusher for loading and unloading the products
- Magazine detection and locking
- Slot monitoring
- Safety device
- Integrated shuttle for onward transport
- Control system with visualization
- Status indicator light
- Magazine identification via code scanning possible
Option
- Belt drive in the magazine holder for onward transport
- Adaptation to customer‑specific magazine sizes
